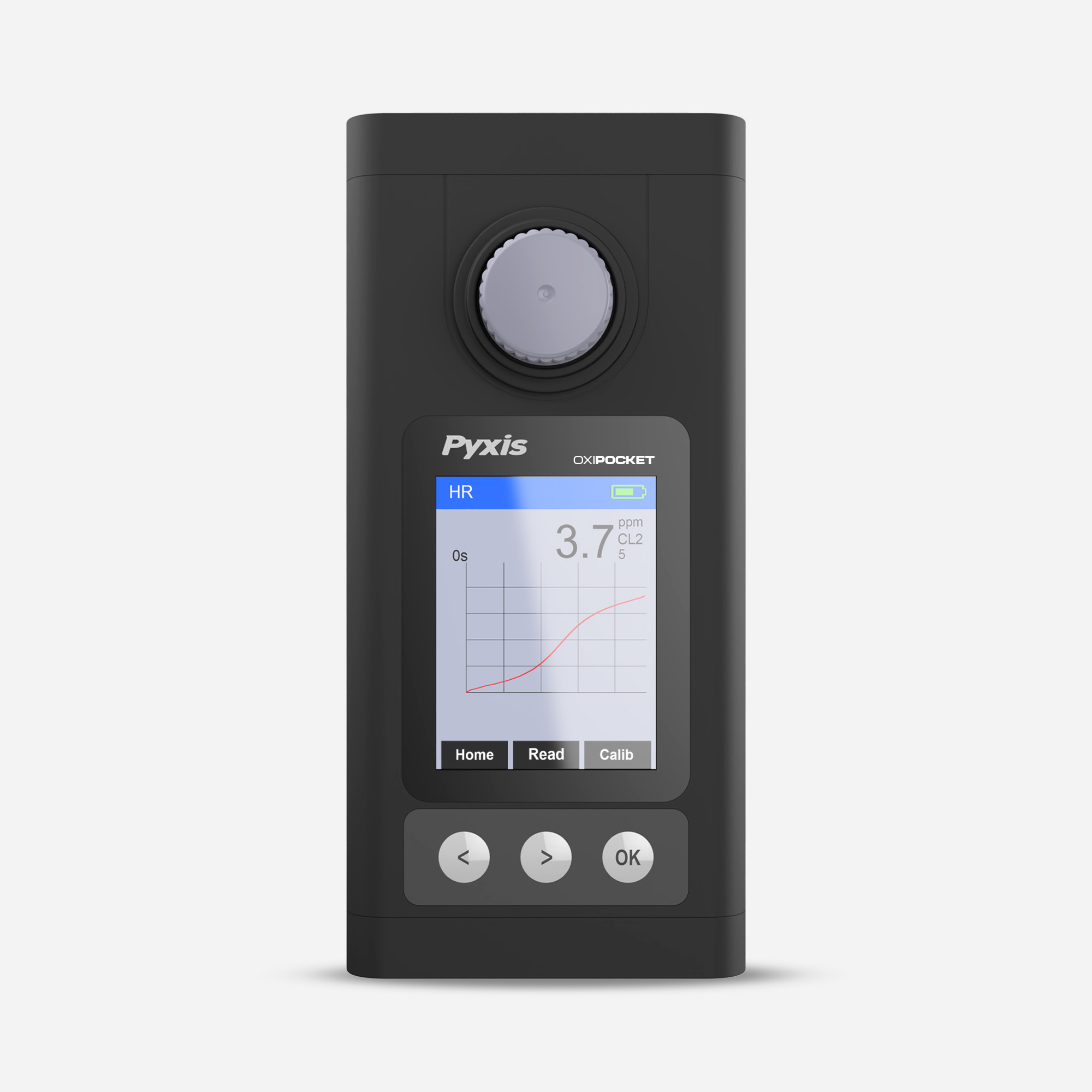

Pyxis SP-200 OXIPOCKET pocket oxidizing-biocide colorimeterPRODUCT IMAGE
SP-200 / 50802Pocket oxidizing-biocide colorimeter

Disinfection verification

PUBLISHED SPEC · VARIANT CONFIRMED AT QUOTATION

SP-200
Pocket oxidizing-biocide colorimeter

All-in-one pocket colorimeter for conventional oxidizing biocides and disinfectants in municipal, domestic and industrial water work, with direct-read chlorine dioxide and bleach concentration methods.

MeasurementColorimetric oxidizing biocides, disinfectants and ammonia · direct-read chlorine dioxide and bleach concentrationColorimetric wavelengths365 / 420 / 470 / 525 / 568 / 624 nmWavelength accuracy±1 nm
Request a quote →

Price, stock and lead time are confirmed privately after HXST reviews the required configuration and application.

QUOTE BUILDERKeep this model with your enquiry.

Add this model now, then review selected equipment before sending your requirements.

Review quote requestOpen selected models →

Application fit

What to check before quotation.

Use the specifications below to assess whether this model fits your application. HXST will confirm the exact variant, accessories and installation context at quotation.

Technical data

Specifications

SP-200 / 50802
Measurement
Colorimetric oxidizing biocides, disinfectants and ammonia · direct-read chlorine dioxide and bleach concentration
Colorimetric wavelengths
365 / 420 / 470 / 525 / 568 / 624 nm
Wavelength accuracy
±1 nm
Absorbance reproducibility
±0.005 Abs (0–1.0 Abs)
Sample format
10 mL / 24 mm diameter cuvette (MA-24)
Display and data
320 × 240 TFT-LCD, visible under direct sunlight · 30,000 group storage via Bluetooth 5.0
Power
4 AA alkaline batteries for the main module · typical battery life 10,000 readings
Operating limits and protection
4–41 °C (40–106 °F) · 85% humidity at 41 °C · IP67 · CE + RoHS
Selection note

Confirm the current model-specific revision, reagent methods and operating envelope before quotation.

Configuration & support

What to discuss with HXST

Application

Share the water or sample context, target measurements and intended use.

Configuration

Share the installation point, outputs, controller or field workflow requirements.

Support

Discuss accessories, operating conditions and guidance needed for the quotation.
