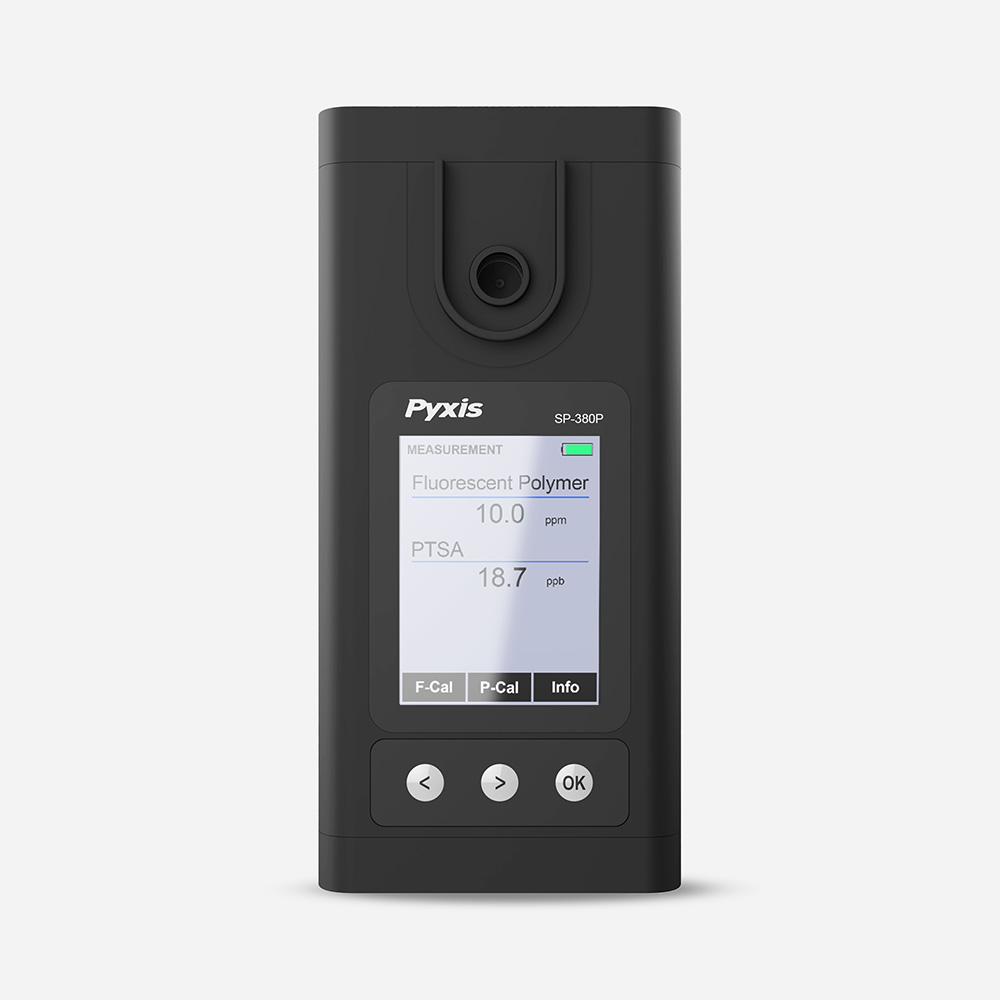

Pyxis SP-380P PTSA and fluorescent polymer handheld fluorometerPRODUCT IMAGE
SP-380P / 50402PTSA and fluorescent polymer handheld fluorometer

Portable field verification

PUBLISHED SPEC · VARIANT CONFIRMED AT QUOTATION

SP-380P
PTSA and fluorescent polymer handheld fluorometer

Dual-channel measurement of PTSA and fluorescent tagged polymer with color and turbidity compensation. It provides direct tracer verification for cooling and process water programs.

MeasurementPTSA · 0.0–300.0 ppb; fluorescent polymer · 0.0–20.0 ppmAccuracy±1% or ±1.0 ppb PTSA; ±1% or ±1.0 ppm polymerOptical wavelengths365 nm and 410 nm LED excitation; 410 nm and 450 nm emission; ±1 nm wavelength accuracy
Request a quote →

Price, stock and lead time are confirmed privately after HXST reviews the required configuration and application.

QUOTE BUILDERKeep this model with your enquiry.

Add this model now, then review selected equipment before sending your requirements.

Review quote requestOpen selected models →

Application fit

What to check before quotation.

Use the specifications below to assess whether this model fits your application. HXST will confirm the exact variant, accessories and installation context at quotation.

Technical data

Specifications

SP-380P / 50402
Measurement
PTSA · 0.0–300.0 ppb; fluorescent polymer · 0.0–20.0 ppm
Accuracy
±1% or ±1.0 ppb PTSA; ±1% or ±1.0 ppm polymer
Optical wavelengths
365 nm and 410 nm LED excitation; 410 nm and 450 nm emission; ±1 nm wavelength accuracy
Power
Four AA alkaline batteries for the main module
Display
320 × 240 TFT-LCD visible under direct sunlight
Sample temperature
40–106 °F (4–41 °C)
Environmental rating
IP67
Communication
Bluetooth 5.0 wireless calibration via uPyxis
Selection note

Confirm the current model-specific revision, accessories and operating envelope before quotation.

Configuration & support

What to discuss with HXST

Application

Share the water or sample context, target measurements and intended use.

Configuration

Share the installation point, outputs, controller or field workflow requirements.

Support

Discuss accessories, operating conditions and guidance needed for the quotation.
