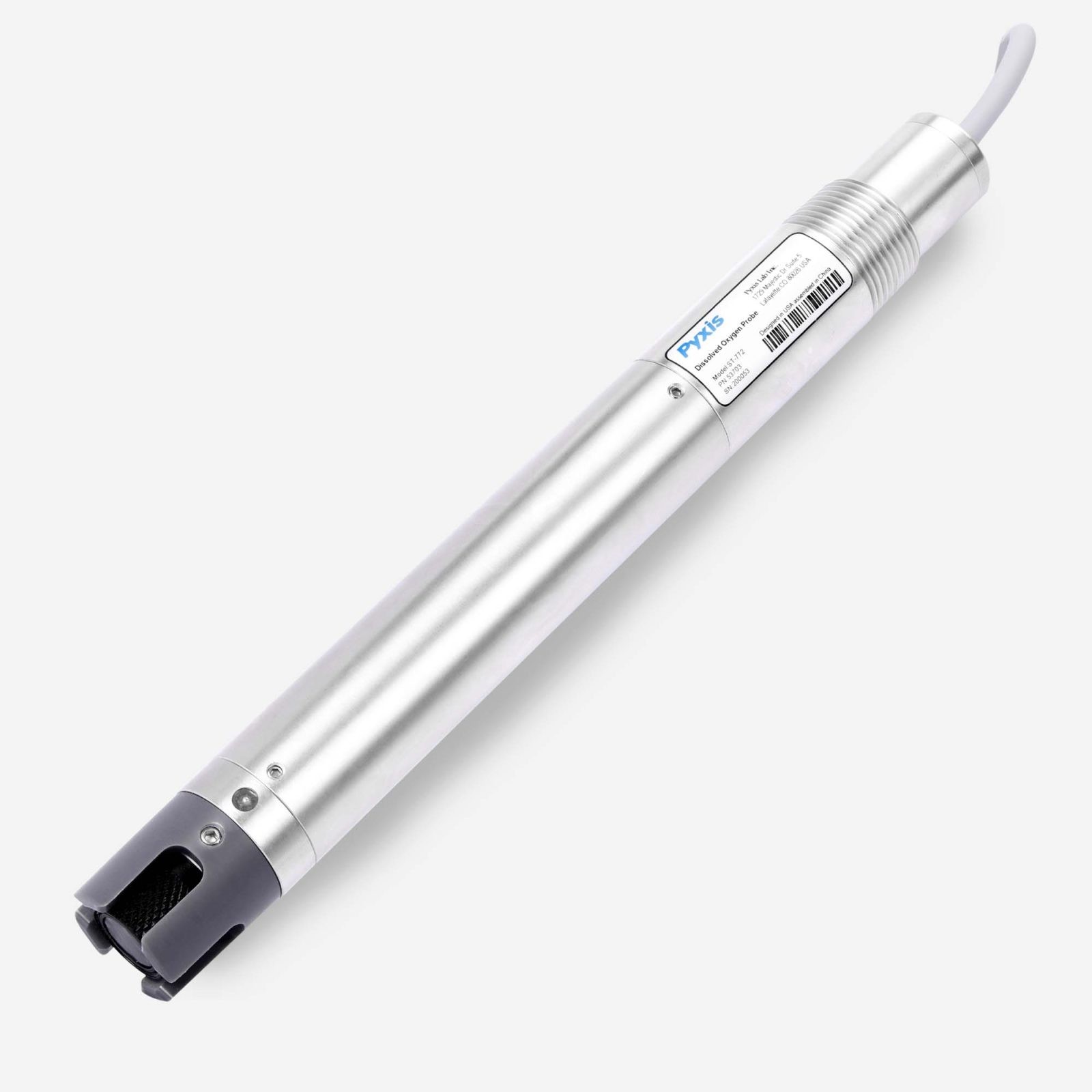

Pyxis ST-772 submersible dissolved oxygen sensorPRODUCT IMAGE
ST-772 / 53703Submersible dissolved oxygen sensor

Core water quality

PUBLISHED SPEC · VARIANT CONFIRMED AT QUOTATION

ST-772
Submersible dissolved oxygen sensor

Measures dissolved oxygen from 0.004 to 20mg/L for wastewater, aeration, aquaculture and process-water monitoring. The stainless steel sensor is configured for submerged installation with automatic temperature and pressure compensation.

Measurement0.004–20mg/L dissolved oxygen; 0–200% saturation; or 0–500mbar PO₂Accuracy±0.1mg/L or ±1%, whichever is greaterOutputsTwo isolated 4–20mA analog outputs and isolated RS-485 Modbus
Request a quote →

Price, stock and lead time are confirmed privately after HXST reviews the required configuration and application.

QUOTE BUILDERKeep this model with your enquiry.

Add this model now, then review selected equipment before sending your requirements.

Review quote requestOpen selected models →

Application fit

What to check before quotation.

Use the specifications below to assess whether this model fits your application. HXST will confirm the exact variant, accessories and installation context at quotation.

Technical data

Specifications

ST-772 / 53703
Measurement
0.004–20mg/L dissolved oxygen; 0–200% saturation; or 0–500mbar PO₂
Accuracy
±0.1mg/L or ±1%, whichever is greater
Outputs
Two isolated 4–20mA analog outputs and isolated RS-485 Modbus
Power
22–26VDC; 0.6W consumption
Installation
Submerged installation
Body and wetted material
304 stainless steel body; 304 stainless steel and polycarbonate wetted materials
Operating limits
145psi working pressure; 0–45°C (32–113°F)
Rating
IP-67/IP-68; USEPA 40CFR Part 136.3
Selection note

Confirm the current model-specific revision, accessories and operating envelope before quotation.

Configuration & support

What to discuss with HXST

Application

Share the water or sample context, target measurements and intended use.

Configuration

Share the installation point, outputs, controller or field workflow requirements.

Support

Discuss accessories, operating conditions and guidance needed for the quotation.
