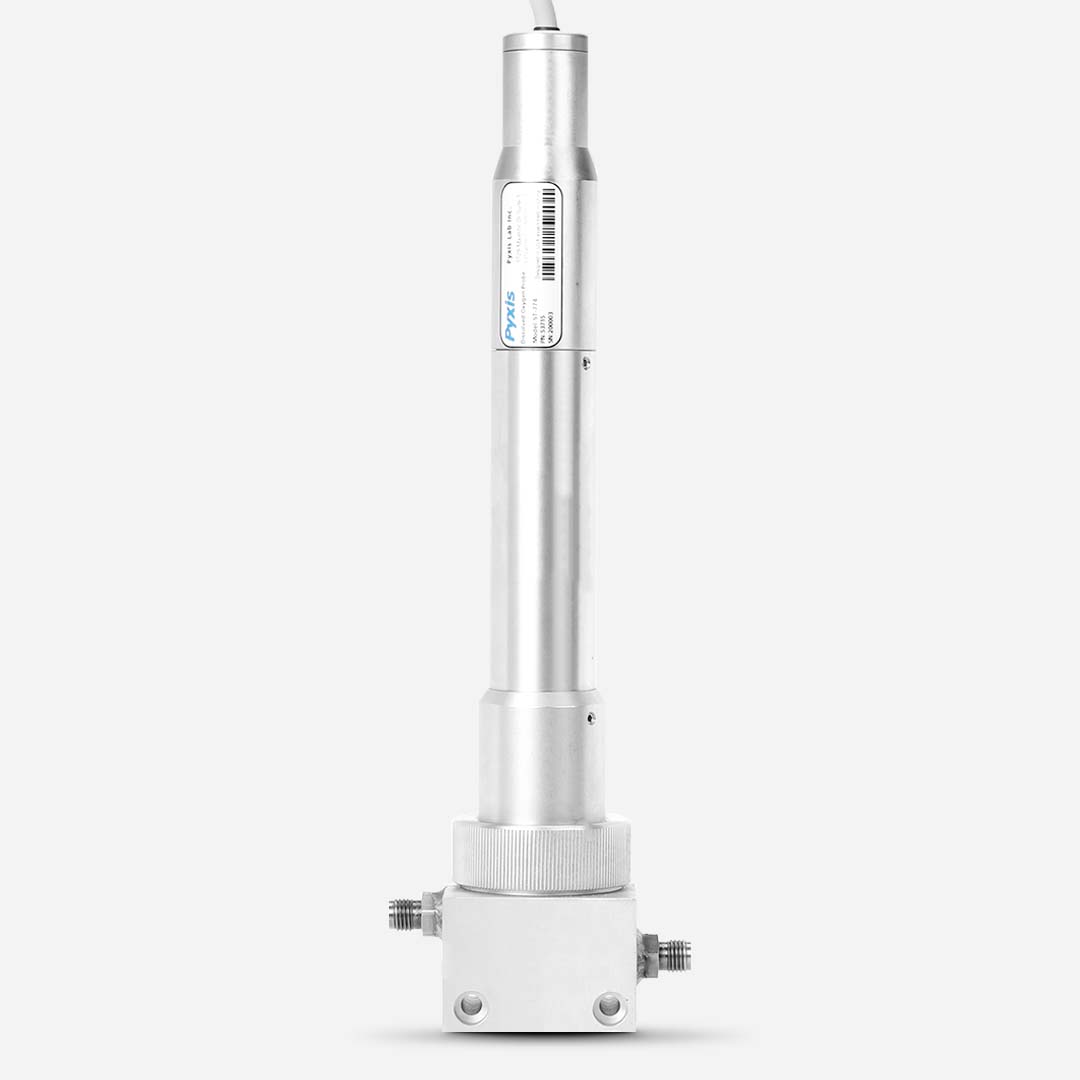

Pyxis ST-774 ultra-low dissolved oxygen sensorPRODUCT IMAGE
ST-774 / 53715Ultra-low dissolved oxygen sensor

Core water quality

PUBLISHED SPEC · VARIANT CONFIRMED AT QUOTATION

ST-774
Ultra-low dissolved oxygen sensor

Measures ultra-low dissolved oxygen from 0.0 to 2,000µg/L (ppb) in boiler feedwater, condensate, closed-loop and ultrapure-water systems. The stainless steel sensor uses a flow connection for controlled sample measurement.

Measurement0.0–2,000µg/L (ppb) dissolved oxygenDetection limit0.4µg/L (ppb)Accuracy±0.3µg/L (ppb) or ±1%, whichever is greater
Request a quote →

Price, stock and lead time are confirmed privately after HXST reviews the required configuration and application.

QUOTE BUILDERKeep this model with your enquiry.

Add this model now, then review selected equipment before sending your requirements.

Review quote requestOpen selected models →

Application fit

What to check before quotation.

Use the specifications below to assess whether this model fits your application. HXST will confirm the exact variant, accessories and installation context at quotation.

Technical data

Specifications

ST-774 / 53715
Measurement
0.0–2,000µg/L (ppb) dissolved oxygen
Detection limit
0.4µg/L (ppb)
Accuracy
±0.3µg/L (ppb) or ±1%, whichever is greater
Outputs
Isolated 4–20mA analog and isolated RS-485 Modbus
Power
22–26VDC; 0.6W consumption
Installation
1/4-inch OD Swagelok; suggested flow 50–500mL/min
Material and pressure
316L stainless steel; 145psi (10bar) working pressure
Operating limits
0–50°C (32–122°F); IP67/IP68
Selection note

Confirm the current model-specific revision, accessories and operating envelope before quotation.

Configuration & support

What to discuss with HXST

Application

Share the water or sample context, target measurements and intended use.

Configuration

Share the installation point, outputs, controller or field workflow requirements.

Support

Discuss accessories, operating conditions and guidance needed for the quotation.
